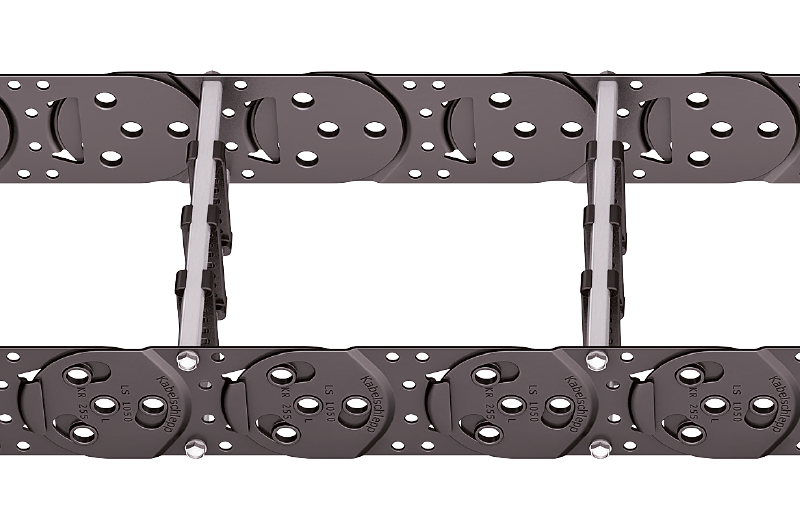

LS/LSX series

Cost-effective steel chains with light design

  • 1. All stays available in 1 mm width sections
  • 2. 4-fold bolted aluminum stays for extreme loads
  • 3. Rolling stays
  • 4. Aluminum hole stays
  • 5. Mounting frame stays
  • 6. Stops integrated into link plate – no additional bolts required
  • 7. Different separation options for the cables
  • 8. Plastic or steel dividers
  • 9. Weight-optimized side bands made of hardened steel or stainless steel
  • 10. Optional center bolt for applications with high loads
  • 11. Good ratio of inner to outer width – no end divider required
  • 12. End connectors for different connection variants

Features

  • Weight-optimized one-part link plate design
  • Better value than comparable steel cable carriers
  • Significantly higher unsupported lengths compared to plastic cable carriers of a similar size
  • Integrated radius and pre-tension stops – in a good value design
  • Bolted stay systems, solid end connectors
  • Cover with steel band available on request
  • Also possible as a double band solution
  • Good corrosion resistance

The design

The weight-optimized link plate design makes the cable carriers very light yet highly sturdy. For the LS series, the unsupported length is significantly higher compared to plastic cable carriers of a similar size.

Longer service life through hardened side bands

The hardened surface significantly increases the service life of the LS1050. Tests were carried out on cable carriers with identical designs.

The LS1050 is therefore ideal for applications with many travel cycles, for example in 3-shift operation.

Significantly higher unsupported lengths compared to plastic cable carriers of a similar size

Load diagram for unsupported length depending on the additional load

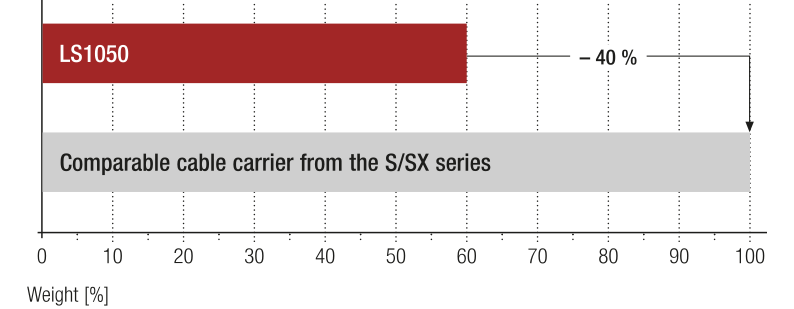

Weight-optimized through adapted link plate design

Types

  Type hi
[mm]
Bi
[mm]
t
[mm]
KR
[mm]
LS/LSX1050 54 – 58 mm 70 – 600 mm 105 mm 105 – 430 mm
