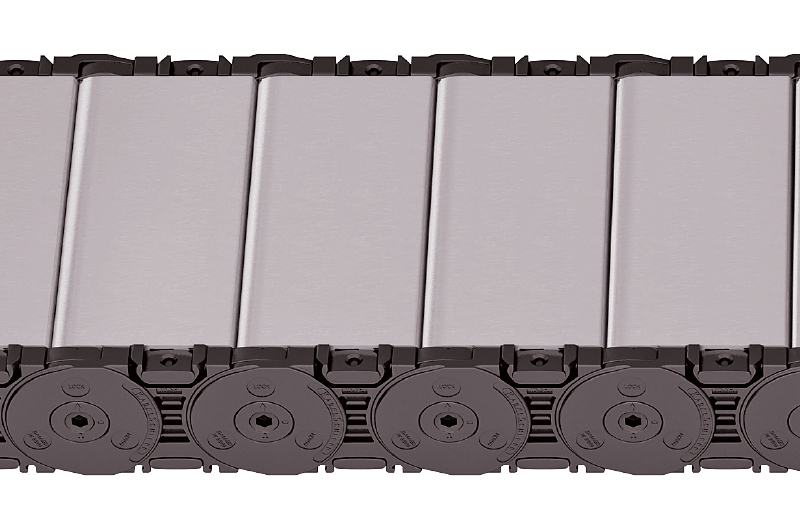

MT series

Variable, closed cable carrier with extensive range of accessories

  • 1. Aluminum cover available in 1 mm width sections
  • 2. Plastic cover available in or 16 mm width sections
  • 3. Can be opened quickly on the inside and the outside for cable laying
  • 4. Locking bolts
  • 5. Replaceable glide shoes
  • 6. Universal end connectors (UMB)
  • 7. C-rail for strain relief elements
  • 8. Strain relief elements

Features

  • Encapsulated, dirt-resistant stroke system
  • Stable side bands through robust link plate design
  • Easy assembly of side bands through bars with easy-to-assemble locking bolts
  • Long service life due to minimized hinge wear owing to the “life extending 2 disc principle”
  • Large selection of vertical and horizontal stay systems and separation options for your cables
  • Versions with aluminum cover system available in 1 mm width sections up to 800 mm inner width
  • Versions with plastic cover system available in 8 or 16 mm width sections

Types

  Type hi
[mm]
Bi
[mm]
t
[mm]
KR
[mm]
MT0475 26 mm 24 – 280 mm 47.5 mm 75 – 300 mm
MT0650 38.5 mm 50 – 500 mm 65 mm 95 – 350 mm
MT0950 54.5 mm 77 – 600 mm 95 mm 140 – 380 mm
MT1250 68.5 mm 103 – 800 mm 125 mm 220 – 500 mm
MT1300 87 mm 100 – 800 mm 130 mm 240 – 500 mm
