QuickTrax® series

Compact and cost-effective cable carriers in two-component technology

  • 1. Sturdy 2-component design: hard chain body, flexible film hinge
  • 2. Plastic chain links
  • 3. Extensive unsupported length
  • 4. Inside space is gentle on the cables – no interfering edges
  • 5. Very quiet through integrated noise damping
  • 6. Quick and easy to open
  • 7. Inside/outside openable
  • 8. Dividers and height separations for cable separation
  • 9. Single-part end connectors with and without integratable strain relief

Features

  • Extremely fast and easy cable laying thanks to crossbar with film hinge
  • Each chain link consists of two different materials:
    – Hard chain body made of glass-fibre reinforced material
    – Crossbar with flexible film hinge made of elastic special plastic
  • Sturdy cable carrier design
  • High torsional rigidity
  • Very quiet through integrated noise damping
  • Extensive unsupported length

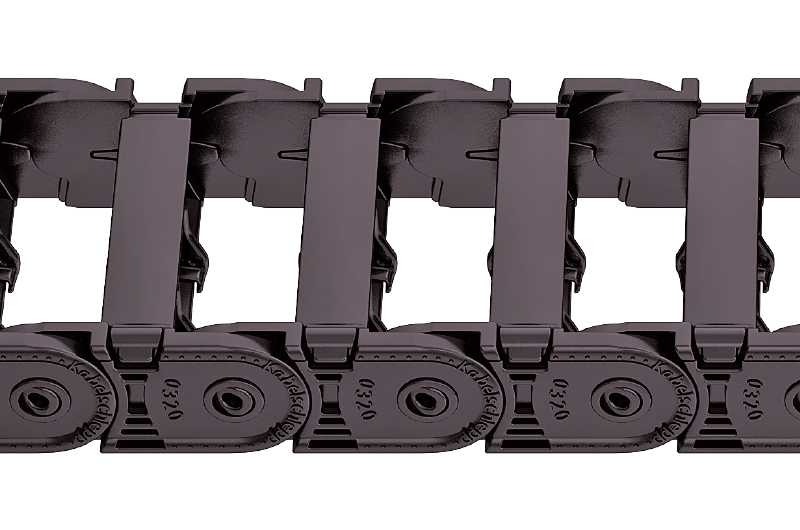

The two-component technology of the QT0320

The two-component technology of the QT0320 combines two seemingly incompatible features: Stability and flexibility.
Cable carriers need to be extremely sturdy, with extensive unsupported length. At the same time, cables need to be inserted easily for fast cable laying.
The QT0320 meets these requirements thanks to its innovative design and material combination of a hard cable carrier body made from glass fiber-reinforced material and crossbars with a film hinge made from rigid special plastic.

Comparison of bending moment

Comparison of bending strength

Comparison of dimensions

Manufacturer hi
[mm]
hG
[mm]
t
[mm]
Identical connection hole pattern
QT0320 20 25.5 32 yes
Competitive product 17.5 23 30.5 yes

Advantages over competitive product

  • 20 % longer unsupported length compared to ­competitive product
  • 33 % greater additional load through use of fiber glass reinforced plastic
  • Greater inner height
  • Low noise operation due to internal damping system
  • High side stability through locking in the stroke ­system
  • Dividers can be used for cable separation

Types

  Type hi
[mm]
Bi
[mm]
t
[mm]
KR
[mm]
QT0320 20 mm 15 – 65 mm 32 mm 28 – 125 mm

Downloads

QuickTrax® series – comprehensive information
QuickTrax® series – concise Information
