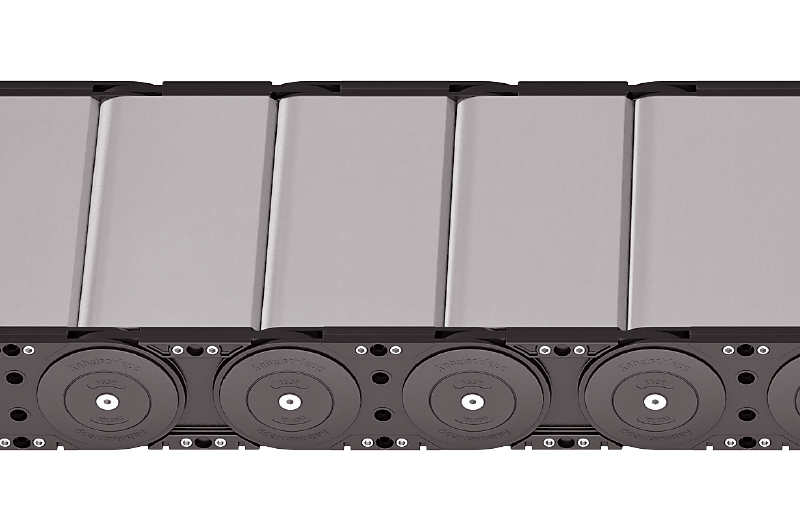

XLT series

Tubes with variable cable carrier widths

  • 1. Aluminum covers available in 1 mm width sections
  • 2. 4 screw-fixing points for extreme loads
  • 3. Can be opened on the inside and the outside for installation of cables and hoses
  • 4. Replaceable glide shoes
  • 5. Sturdy end connectors made of steel
  • 6. Flange connection

Features

  • Sizes/dimensions
  • Low intrinsic weight
  • Optimum force transmission via the large-surface stroke system (2 disc principle)
  • Plastic side bands in combination with aluminum stays
  • Versions with aluminum stays available in 1 mm width sections up to 1000 mm inner width
  • Can be opened on both sides
  • Large selection of separating options for cables and hoses
  • Optionally with strain relief

Types

  Type hi
[mm]
Bi
[mm]
t
[mm]
KR
[mm]
XLT1650 105 mm 200 – 1000 mm 165 mm 300 – 550 mm

Downloads

XLT series – concise Information
